DTECH DT-8021 Semi-automatic KVM switcher 2 * 1

DTECH DT-8021 Semi-automatic KVM switcher 2 * 1

DTECH DT-8021 Semi-automatic KVM switcher 2 * 1
DTECH DT-8021 Semi-automatic KVM switcher 2 * 1DTECH DT-8021 Semi-automatic KVM switcher 2 * 1DTECH DT-8021 Semi-automatic KVM switcher 2 * 1DTECH DT-8021 Semi-automatic KVM switcher 2 * 1DTECH DT-8021 Semi-automatic KVM switcher 2 * 1
CategoriesVGA Switcher
BrandDtech
ModelDT-8021
Resolution2048 * 1536
Input2 x vga
Output1 x vga
SupportKeyborad and mouse control
Warranty12 months
Bandwidth500Mhz
FOB portGZ
Terms of PaymentL/C, D/P, Western Union
Download DOCpdf icon
Update TimeMar 29,2024
Detail Information
DTECH DT-8021 Semi-automatic KVM switcher 2 * 1
Introduction:
It allows up to two Ultra High Definition 2048 * 1536 or Full HD 1080p sources to be routed to one Ultra HD display. This product supports resolutions up to 500m, 2048 * 1536.

Feature:

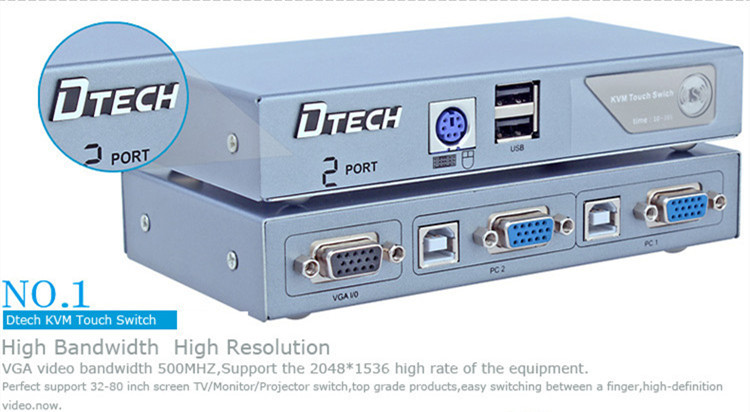

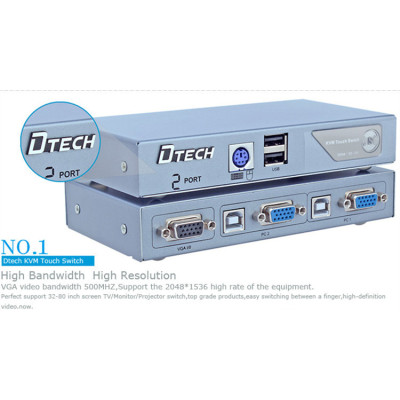

1. The VGA video bandwidth is 500mhz, 2048 * 1536 high resolution of the equipment.
2. Two USB port can realize USB 2.0 switch, USB rate of 480 MBPS, compatible with 1.1, can be used as a HUB is used, connect the camera, mobile hard disk, network CARDS, etc. 127 kinds of USB devices.

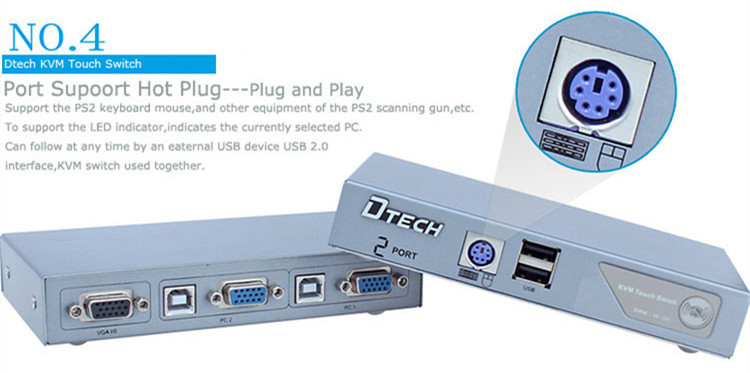

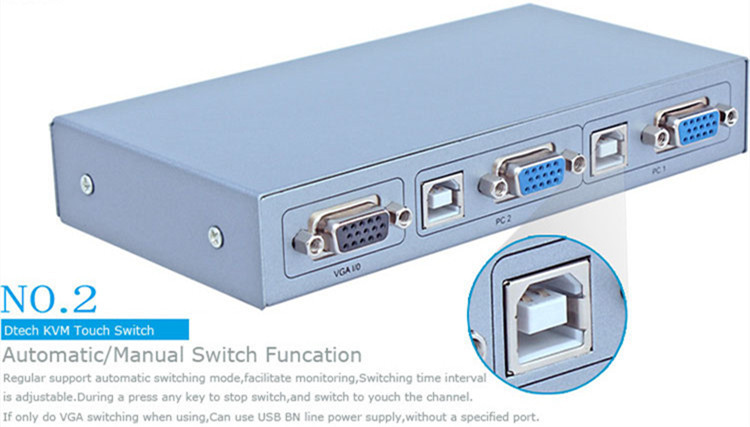

3. Support the PS2 keyboard mouse, and other equipment of the PS2 scanning gun, etc                                                                      4. Support time automatic switching mode, easy to monitor, switching time interval is adjustable. During a press any key to stop switch, and switch to touch the channel.

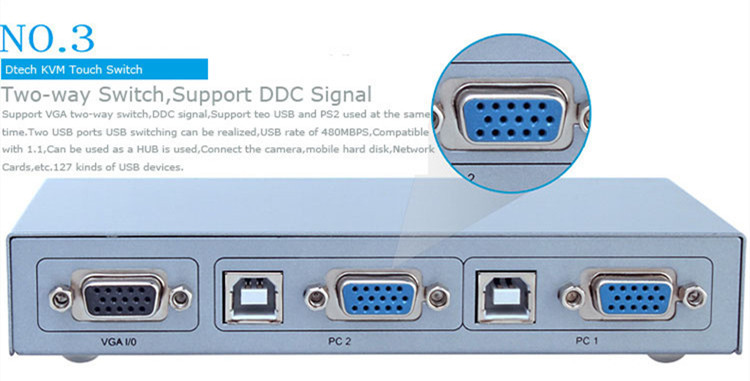

5. Double to support VGA switching, support the DDC signal, support two USB and PS2 used at the same time
6. Support the LED indicator, indicates the currently selected PC.
7. Can be an external usb device through the usb interface, at any time following the KVM switch used together                                        8. If only do VGA switching when using,can use USB BM line power supply, without a specified port.

Specification:
(i) Bandwidth 225MHz (-3db) Full.
(ii) Timing DDWG standard required to meet the standards DVI1.0.
(iii) Coupling: 05o (RL = 150Ω.
(iv) Differential gain: 05% (RL = 150Ω
(iv) Maximum propagation delay of 5ns (± 1)
(v) Switching speed ≤ 180ns
(vi) Supports a maximum resolution 1920 × 1200, the maximum output length 20 (5 +15) m (vii). Signal Type DVI-I digital video signals.
DTECH DT-8021 Semi-automatic KVM switcher 2 * 1
DTECH DT-8021 Semi-automatic KVM switcher 2 * 1
DTECH DT-8021 Semi-automatic KVM switcher 2 * 1
DTECH DT-8021 Semi-automatic KVM switcher 2 * 1
DTECH DT-8021 Semi-automatic KVM switcher 2 * 1
