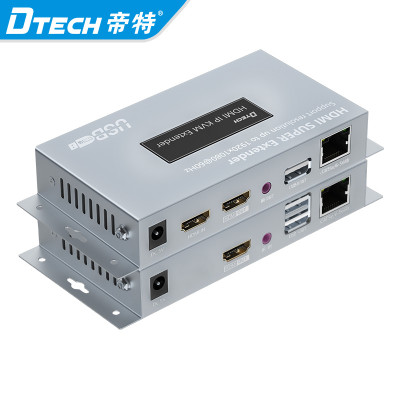

Dtech Via LAN Cable 1080p 120m tx rx rj45 to Hdmi Kvm Extender IR Hdmi Extender

Name: Dtech Via LAN Cable 1080p 120m tx rx rj45 to Hdmi Kvm Extender IR Hdmi Extender
Brand: Dtech
SKU: 18289116
Rating: 4.75 (10 reviews)

Categories	HDMI Extender
Brand	Dtech
Model	DT-7050(2nd)
connection way	one to one, one to many
transmission distance	120m
LAN cable	CAT5e/6 cable UTP
kvm function	keyboard and mouse control
protocol	TCP/IP
Latence	200ms
HDMI version	1080P 60HZ
USB version	USB1.1
FOB port	Guangzhou
Terms of Payment	T/T
Download DOC
Update Time	Apr 20,2024

Contact Now

Favorites

Detail Information

Dtech via LAN cable 1080p 120m tx rx rj45 to hdmi kvm extender ir hdmi extender

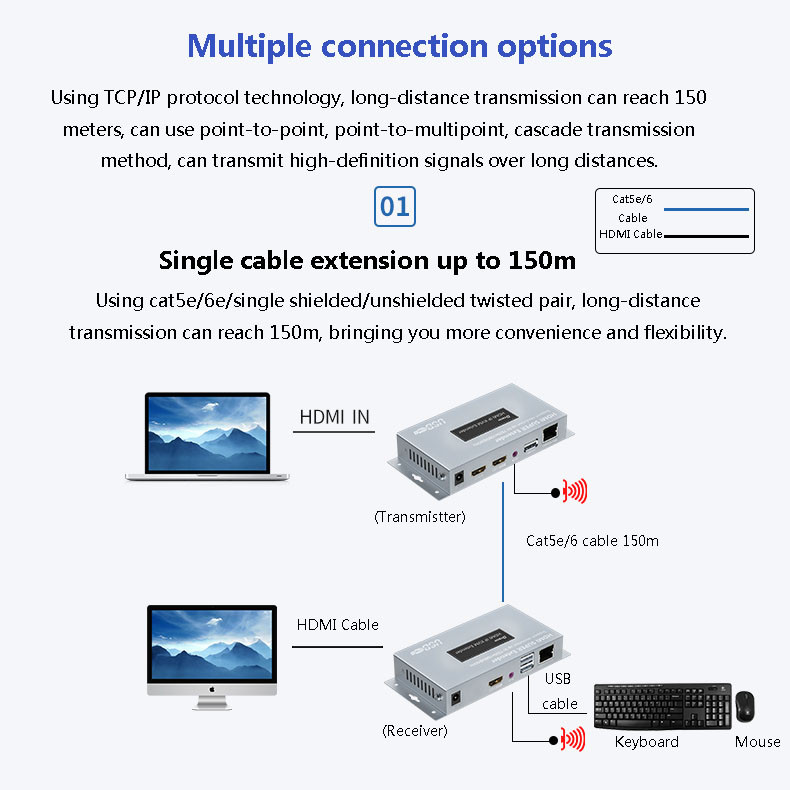

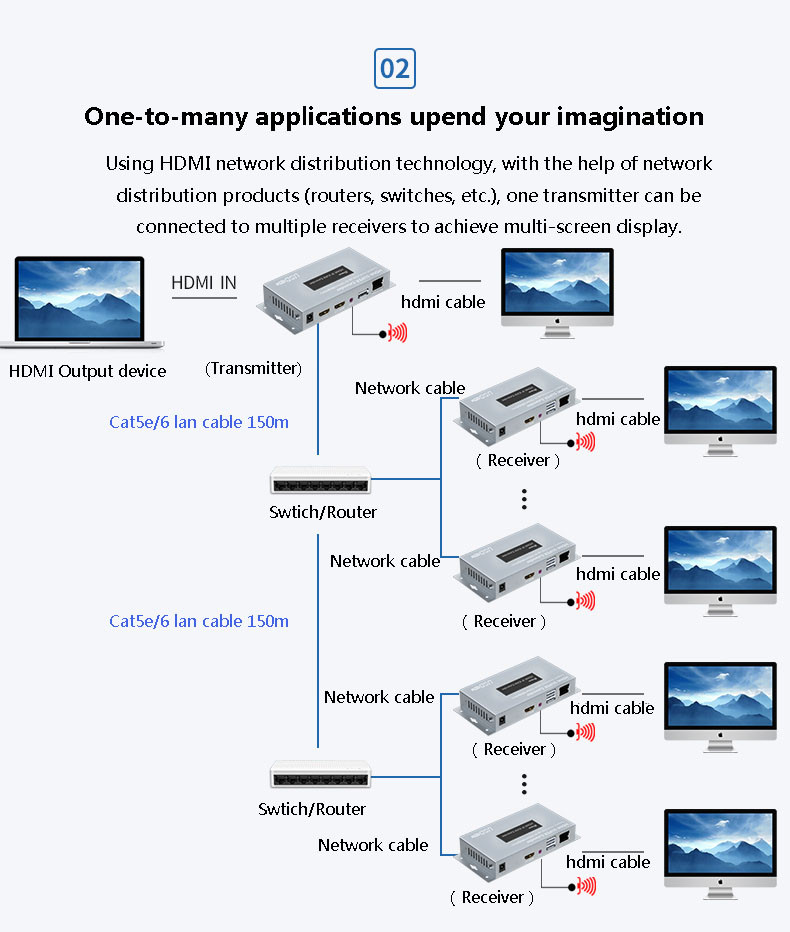

This HDMI KVM Extender transmit HD signal up to 120m via single CAT 5e/6, resolution up to 1080P. Not only breaks the transmission distance limitation of HDMI cable, but also save cost for you. besides, it is more convenient and flexible. It extends audio & video signals up to 120m via LAN cable, can achieve cascading connection by the virtue of switch. It can also support one to many connection ( one transmitter can connect 253 receivers maximum). Meanwhile it is easy to to transmit HDMI high-definition signals by point to point, one to many, cascading connection. It is widely used for computer teaching system, high quality multimedia display, video conference, computer, LCD plasma high-definition display hall, digital home theater, exhibitions, education, financial, scientific research and meteorology etc.

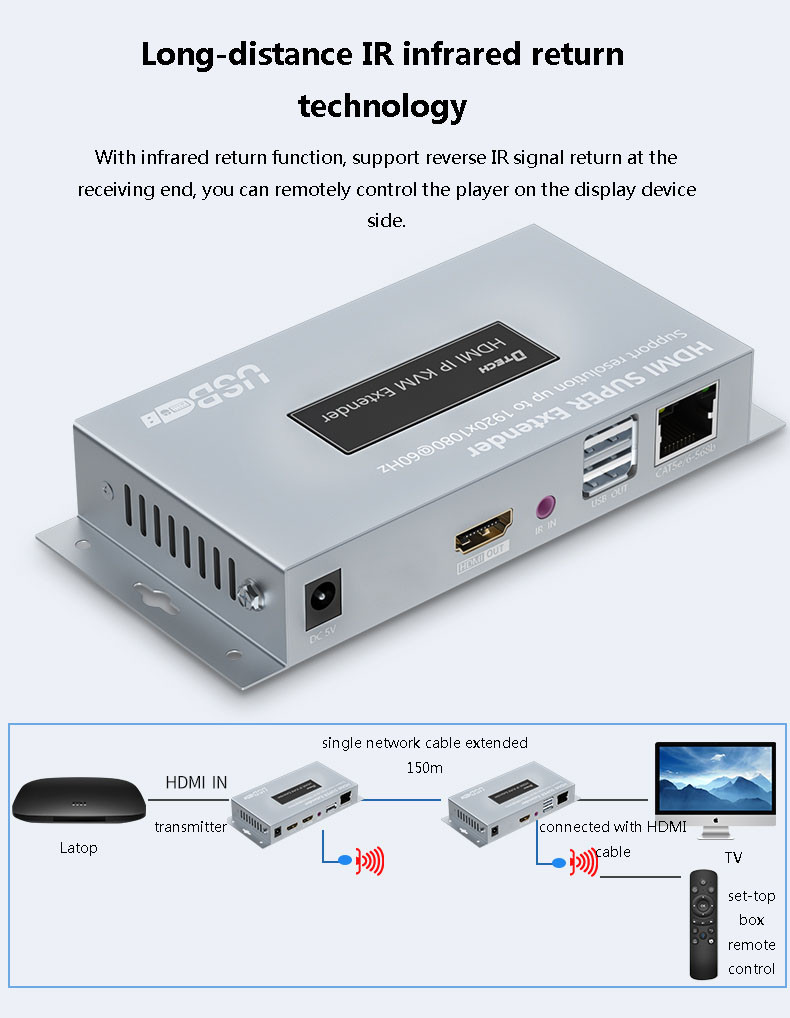

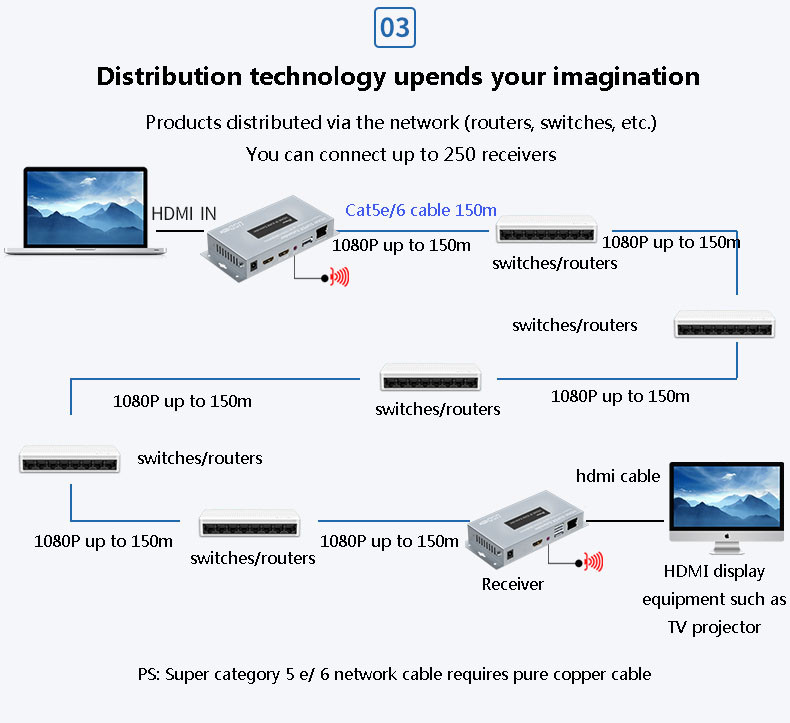

Ⅱ. Product parameters 1 Using broadcast bandwidth balance transmission mode, good anti-interference capability, transmission distance up to 120m via CAT6e cable. 2 Support CAT5e/CAT6e/ single shielded/ non-shielded UTP real time point to point, point to multi-point transmit video and audio signals. 3 Support HDMI , 1080P@60HZ, backward compatible. 4 Support keyboard and mouse remote control. 5 Support IR return function. 6 With signal 3DB gain or additive compensation, to make sure the signal’s high definition and true revivification. 7 Lightning protection, anti-dust, anti-static, prolong the service life. 8 Can realize cascading connection and amplifying transmission via switch/routers or other repeater device, achieve extending up to 240m.
