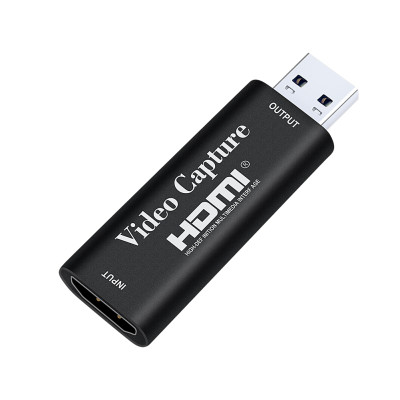

Dtech hdmi video capture card 1080P Support Input 4K AV Video Hdmi to Usb Capture hdmi capture card
| Categories | Converter |
|---|---|
| Brand | Dtech |
| Model | cjk-01 |
| Product name | hdmi capture card |
| Application | home/school... |
| Keyword | Audio Vedio Capture Card |
| Material | Plastic Shell |
| Input | One Channel |
| FOB port | Guangzhou |
| Download DOC |  |
| Update Time | Apr 16,2024 |
Detail Information
Dtech hdmi video capture card 1080P Support Input 4K AV Video Hdmi to Usb Capture hdmi capture card
1. Support the maximum input resolution of 3840x2160@ 30Hz;
2. Support the maximum output resolution of 1920x1080@ 30Hz;
3. Support 8 / 10 / 12 bit color depth;
4. When standard AWG26 cable is used, the input transmission distance is up to 15m (resolution of 1080P and below);
5. Support most acquisition software, such as for VLC, OBS, Amcap, etc;
6. Support for windows, Android and Mac OS;
7. Conform to USB video UVC specification;
8. Conform to USB audio UAC specification;
9. Without external power supply, small and portable.
2. Support the maximum output resolution of 1920x1080@ 30Hz;
3. Support 8 / 10 / 12 bit color depth;
4. When standard AWG26 cable is used, the input transmission distance is up to 15m (resolution of 1080P and below);
5. Support most acquisition software, such as for VLC, OBS, Amcap, etc;
6. Support for windows, Android and Mac OS;
7. Conform to USB video UVC specification;
8. Conform to USB audio UAC specification;
9. Without external power supply, small and portable.
* Connection and Operation
1: Connect the UHD signal source to the HDMI input of the video capture with one HDMI cable.
1: Connect the UHD signal source to the HDMI input of the video capture with one HDMI cable.
2: Connect the computer to the usb
port of the video capture with usb cable.
port of the video capture with usb cable.
3: Operation steps for USB video capture(OBS): Open the software→Choose sources of“Video capture Device”→Set the size of image→Choose “Studio Mode”(double window) →Choose “Start Recording”.
Note: Computer hardware configuration requirements
Note: Computer hardware configuration requirements
CPU: PC i5-3400 or above ；NB i7-3537U 2.0GHZ or above
Graphics card: PC NVIDIA
GT630 or above；
GT630 or above；
NC NVIDIA GT735M or above
Run memory: 4G RAM
