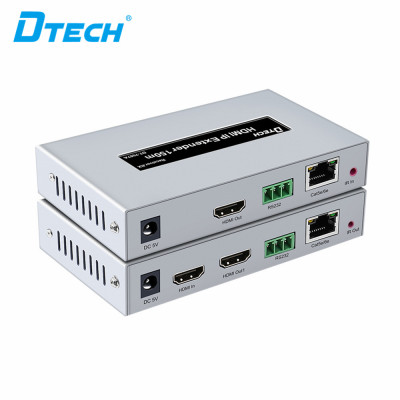

This HDMI IP extender extends HDMI signals up to 150m via one single cat5e/6 and resolution up to 1080P, it breaks the transmission distance limitation of HDMI cable and save cost for customers. It is more convenient and flexible.
This product transmits the audio and video signals to the far end, up to 150m. If more than 150m can be extended by means of a switch multilevel connection, and a transmitter can be connected to many receivers (maximum 253 receivers). At the same time, it is convenient to use the point-to-point, point-to-multipoint and cascade mode to transmit HDMI hd audio and video signals. It is widely used in the fields of computer teaching system, high quality multimedia display, video conference, computer, LCD plasma display conference, digital home theater, exhibition, education, finance, scientific research, meteorology, etc.
This extender support resolution 1080P@60HZ, downward compatible; with IR return function, convenient to control equipment remotely for users. It can be extended to 150 meters via cat5e/6 LAN cable. POE function switch or router can be used to realize cascade transmission. After a series of tests, the following results are obtained.
(1) The broadcasting band balanced transmission mode has strong anti-interference ability, and the Cat6e network cable can be extended to 150 meters;
(2) Support Cat5e/Cat6e/ single STP/UTP cable real-time point-to-point, point-to-multipoint transmission of audio and video signals;
(3) HDMI signal supports 1080P@60Hz resolution, downward compatible
(4) support keyboard and mouse remote operation;
(5) support IR return function;
(6) With 3dB gain or pre-compensation to ensure high definition true reduction;
(7) Lightning protection, dust protection, anti - static, extended service life;
(8) Relay equipment such as switches/routers with POE function can realize cascade connection and amplification transmission, and realize extension of 300 meters.(supports 4,5, 7,8 power supply switches);
(9) with 26AWG HDMI standard cable, input end distance can be 10m, output end distance can be 5m.
2.. Electrostatic discharge voltage protection
3. Product working temperature
(1)the transmitter: working temperature 40℃-75℃ (room temp 25℃)
(2)the receiver: working temperature 40℃-85℃ (room temp 25℃)
(1)This product can only use USB1.1 keyboard and mouse.
(2)Connect USB AM/BM data cable before you use the keyboard and mouse.
(3)Use the switch of 4,5, 7 and 8 power supply to transmit, video signal can be point to many point transmission, and USB signal can be point to point transmission only.
(4)please use this product under the allowed distance, 120m by cat5e.
(1)DT-7067A product *1Pair
(2)IR line *2pcs
(3)power adapter *2pcs
