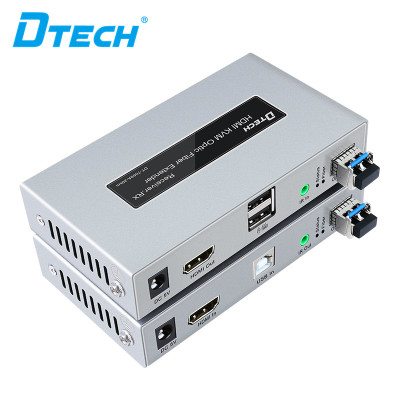

DT-7059 Factory Price OEM ODM KVM RX TX HDMI over fiber extender over fiber 20km
Ⅰ. Product description
This HDMI fiber KVM extender is used to solve the problems appears when the HDMI signal is in long distance transmitting, such as image mosaic, color distortion, and inability to transmit. It is designed for internet tablet display and large-screen advertising wall display, and other occasions require high-quality HDMI audio and video signal long distance transmission. You can select the corresponding fiber module according to the transmission distance, and can also realize cascade transmission via fiber optic switch. It is widely used in all supermarkets, video conference, security center, computer teaching systems and data management systems, etc.
2. Product function parameters
(1) With a fiber module the HDMI signal can be transmitted to 20km via the optical fiber cable.
(2) HDMI signal resolution supports 1920*1080@60Hz, backward compatible;
(3) Support keyboard & mouse remote operation;
(4) Using the H.264 format to compress and decompress video, it effectively increases the transmission rate and ensures the smoothness and stability of playback;
(5) Built-in automatic equalization system makes the picture smooth, clear and stable;
(6) With lightning protection, dust prevention, static prevention, can prolong the service life;
(7) Cascading transmission can be implemented via optical fiber switch;
(8) By using of 26AWG HDMI standard cable, the input transmission distance can be up to 10 meters, the output transmission distance can be up to 5 meters.
