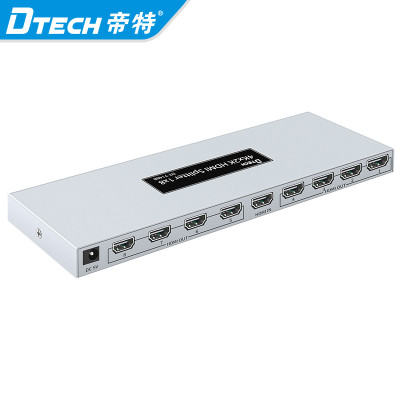

Dtech 3d HD 1x8 Port Adapter 4k HDMI Splitter 1 in 8 out

Dtech 3d HD 1x8 Port Adapter 4k HDMI Splitter 1 in 8 out

Dtech 3d HD 1x8 Port Adapter 4k HDMI Splitter 1 in 8 out
Dtech 3d HD 1x8 Port Adapter 4k HDMI Splitter 1 in 8 outDtech 3d HD 1x8 Port Adapter 4k HDMI Splitter 1 in 8 outDtech 3d HD 1x8 Port Adapter 4k HDMI Splitter 1 in 8 outDtech 3d HD 1x8 Port Adapter 4k HDMI Splitter 1 in 8 outDtech 3d HD 1x8 Port Adapter 4k HDMI Splitter 1 in 8 out
CategoriesHDMI Splitter
BrandDtech
ModelDT-7148B
HDMI versionHDMI
certificateCE FCC RoHS SASO
Resolution1080p/1080i/720p
Power supplyDC 5V1A
Materialmetal shell
Max bandwidth340MHz
SupportFull HD, Full 3D,4kx2k
Terms of PaymentT/T
Download DOC
Update Time2021-09-20
Detail Information
DTECH Multimedia Multi-screen Display 4kx2k 60hz 3d HD 1x8 Port Adapter HDMI Splitter
HDMI version
HDMI
HDMI resolution
24/50/60fs/1080p/1080i/720p/576p/576i/480p/480i
Support video color format
24bit/deep color 30bit,36bit
Support audio format
DTS-HD/Dolby-trueHD/LPCM7.1/DTS/Dolby-AC3/DSD HD(HBR)
Max bandwidth
340MHz
Max baud rate
10.2Gbps
Input/Output TMDS signal
0.5~1.5Volts p-p(TTL)
Input/Output DDC signal
5Volts p-p (TTL)
Input cable distance
15m AWG26 HDMI standard cable
Output cable distance
≤25m AWG26 HDMI standard cable
Max working current
2A
Power adapter format..
Input:AC (50HZ, 60HZ) :100V-240V; Output: DC12V/3A
Operating Temperature range
(-15 to +55°C)
Operating Humidity range
5 to 90%RH (No Condensation)
