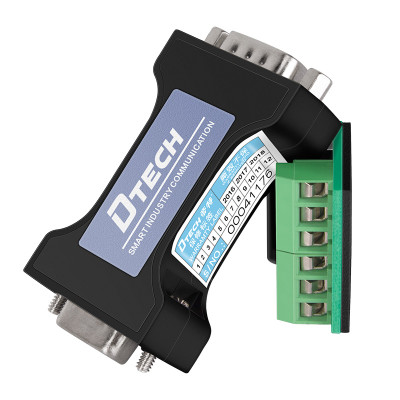

Dtech Factory Professional Audio Video Industrial Passive Ethernet RS232 to RS485 Converter

Dtech Factory Professional Audio Video Industrial Passive Ethernet RS232 to RS485 Converter

Dtech Factory Professional Audio Video Industrial Passive Ethernet RS232 to RS485 Converter
Dtech Factory Professional Audio Video Industrial Passive Ethernet RS232 to RS485 ConverterDtech Factory Professional Audio Video Industrial Passive Ethernet RS232 to RS485 ConverterDtech Factory Professional Audio Video Industrial Passive Ethernet RS232 to RS485 ConverterDtech Factory Professional Audio Video Industrial Passive Ethernet RS232 to RS485 ConverterDtech Factory Professional Audio Video Industrial Passive Ethernet RS232 to RS485 Converter
CategoriesConverter
BrandDtech
ModelDT-9003
Dimension63mm*33mm*17mm
Communication distance1200 meters
Communication rate300bps-115.2Kbps
Work wayAsynchronous half-duplex(RS485)
CertificationsCE
FOB portGuangzhou
Terms of PaymentL/C, D/A, D/P, Western Union, MoneyGram, T/T, Paypal
Download DOC
Update Time2022/8/8
Detail Information
Dtech Factory Professional Audio Video Industrial Passive Ethernet RS232 to RS485 Converter

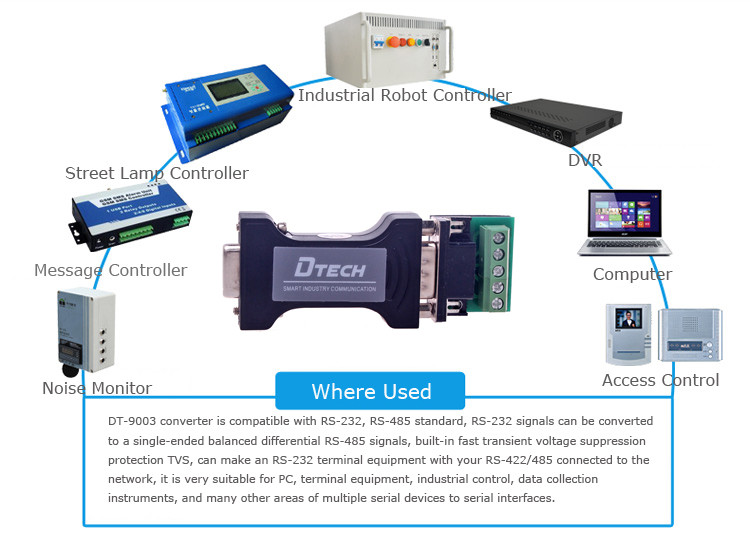

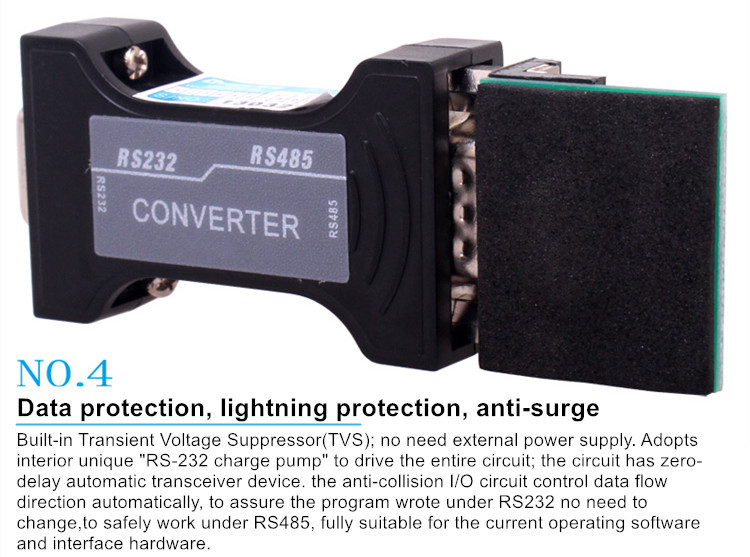

Converter is compatible with the RS - 232, RS - 485 standard, can be an RS - 232 signal is converted to Differential signaling of the RS - 485 / RS422, without external power supply, internal adopt unique "RS - 232 charge pump" drive the whole circuit; Circuit with zero delay automatic transceiver conversion device, prevent collision of the I/O circuit automatic control data flow direction, so as to ensure the programs written in the RS - 232 manner without change, can be in the safe operation of the RS - 485 / RS422 mode, and fully ensure that suitable for the operation of the existing software and hardware interface.
1, Size: 64mmX33mmX17mm
2, Transmission rate: 300BPS-115.2KBPS
3, Transmission medium: twisted pair or shielded wire

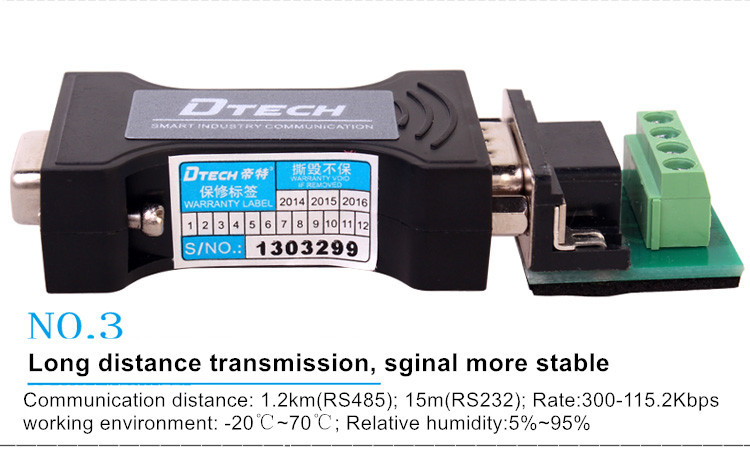

4, Transmission distance: 1200 meters (RS-485 end) 5 meters (RS-232 end)
5,Use of the environment: -20 degrees to 70 degrees, relative humidity of 5% to 95%
6, Interface characteristics: interface compatible with EIA/TIA RS-232C, RS-485/RS-422 standard
7, Electrical interface: RS-232 end DB9 connector, RS-485/422 end DB9 needle type connector, with terminal
8, Work mode: Asynchronous Full Duplex, half duplex difference automatic selection of transmission, without jumper settings
RS232 to RS485 Converter
