Hot Selling Video Camera Cat5e Lan Cable 4k USB Ports 50m Hdmi USB Extender with USB

Hot Selling Video Camera Cat5e Lan Cable 4k USB Ports 50m Hdmi USB Extender with USB

Hot Selling Video Camera Cat5e Lan Cable 4k USB Ports 50m Hdmi USB Extender with USB
Hot Selling Video Camera Cat5e Lan Cable 4k USB Ports 50m Hdmi USB Extender with USBHot Selling Video Camera Cat5e Lan Cable 4k USB Ports 50m Hdmi USB Extender with USBHot Selling Video Camera Cat5e Lan Cable 4k USB Ports 50m Hdmi USB Extender with USBHot Selling Video Camera Cat5e Lan Cable 4k USB Ports 50m Hdmi USB Extender with USBHot Selling Video Camera Cat5e Lan Cable 4k USB Ports 50m Hdmi USB Extender with USB
CategoriesUSB Extender
BrandDtech
ModelDT-7014A
Model NumberDT-7014A
Resolution1920x1080
Bandwidth480Mbps
Dimension (L x W x H)82mmX45mmX22mm
Power Supply5V
Transmission distance50m
FOB portGuangzhou
Terms of PaymentL/C, D/A, D/P, Western Union, MoneyGram, T/T, Paypal
Download DOC
Update Time2021-09-20
Detail Information
Hot Selling Video Camera Cat5e Lan Cable 4k USB Ports 50m Hdmi USB Extender with USB

Ⅰ. Introduction

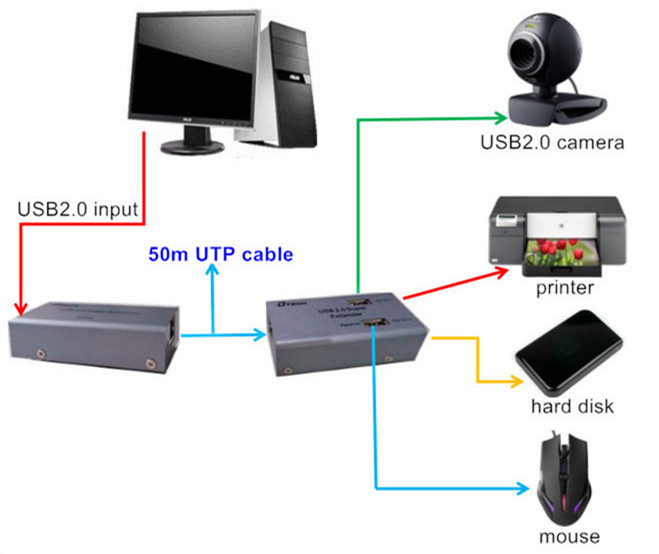

This USB2.0 extender adopts USB standard 2.0 protocol, compatible with 1.1 protocol. It can break the constraint of computer host to USB cable length. Users can connect a standard USB port via the sender’s end at the computer host, and can use 4 standard USB ports at the receiver’s far end via single LAN cable. It can be widely used in the fields of computers, education, bank security systems etc.

Ⅱ.Product parameters

1. USB signals transmitted by a single LAN cable, easy to use and install,  it can be extended up to 50m via LAN cable.

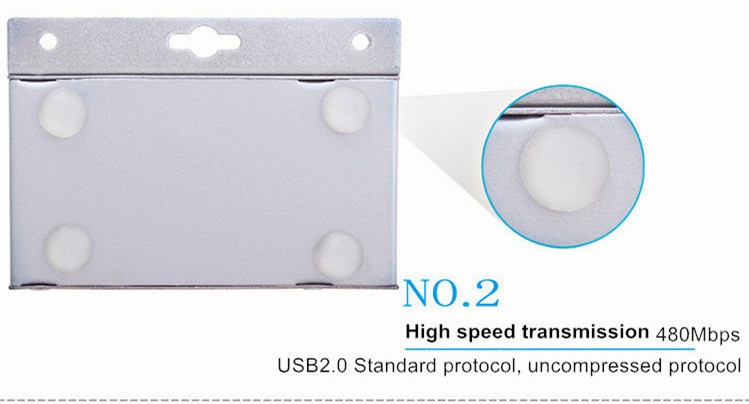

2.USB2.0 interface, transfer rate up to 480Mbps, backward compatible  with USB1.1

3. Transmit uncompressed signals, transmit speed can reach the USB2.0 standard speed.

4. Supports standard CAT5/CAT5E and CAT6.

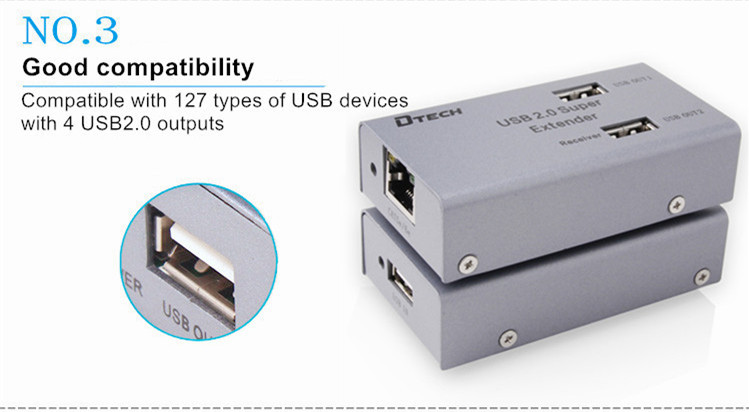

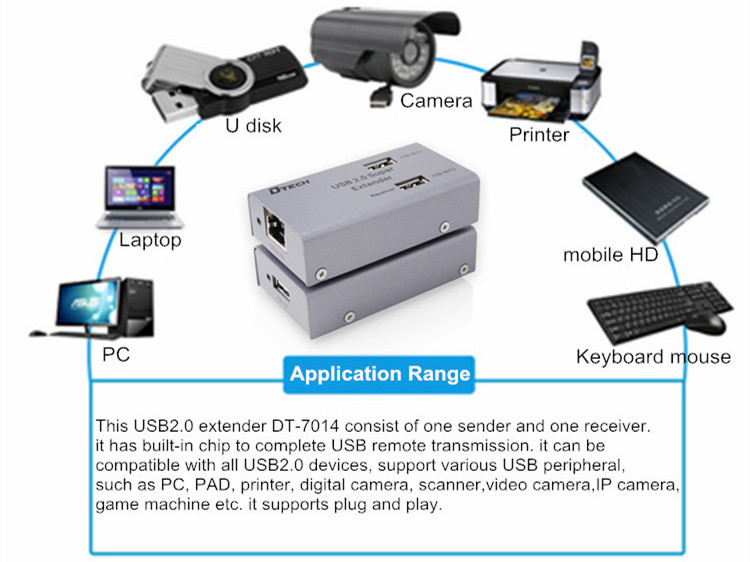

5. Can connect all USB devices, printers, network cameras, hard drives, mobile phones, digital cameras, game controller, etc.

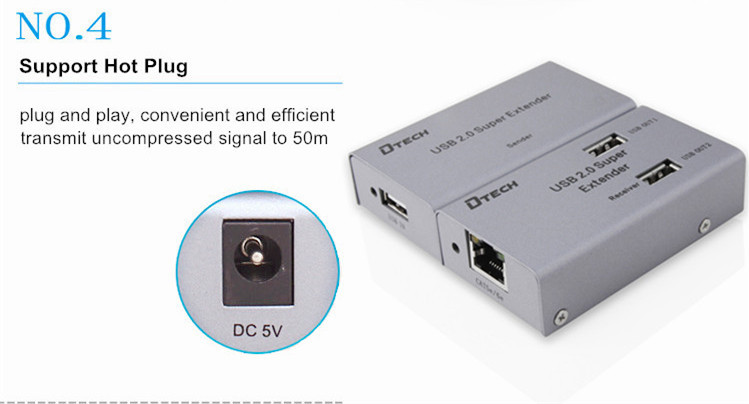

6. Rated input voltage:5V; input current: external power supply 1000mA

7. Operating temperature range (-15℃ to +75 ℃)

8. Product Dimensions: sender, receiver (L * W * H) 82X45X22 (mm)

9. Product net weight: 205g±10g

usb 2.0 extender
