Dtech 1500VDC Passive RS232 Photoelectric Isolation Protector RS232 Converter with Lighting

Dtech 1500VDC Passive RS232 Photoelectric Isolation Protector RS232 Converter with Lighting

Dtech 1500VDC Passive RS232 Photoelectric Isolation Protector RS232 Converter with Lighting
Dtech 1500VDC Passive RS232 Photoelectric Isolation Protector RS232 Converter with LightingDtech 1500VDC Passive RS232 Photoelectric Isolation Protector RS232 Converter with LightingDtech 1500VDC Passive RS232 Photoelectric Isolation Protector RS232 Converter with LightingDtech 1500VDC Passive RS232 Photoelectric Isolation Protector RS232 Converter with LightingDtech 1500VDC Passive RS232 Photoelectric Isolation Protector RS232 Converter with Lighting
CategoriesConverter
BrandDtech
ModelDT-9015
Brand NameDTECH
Dimension63mm*33mm*17mm
Communication rate300bps-115.2Kbps
Transmission distance1200 meters (RS-485 end)
Transmission rate300BPS-11
FOB portGuangzhou
Terms of PaymentL/C, D/A, D/P, Western Union, MoneyGram, T/T, Paypal
Download DOC
Update Time2022/8/8
Detail Information

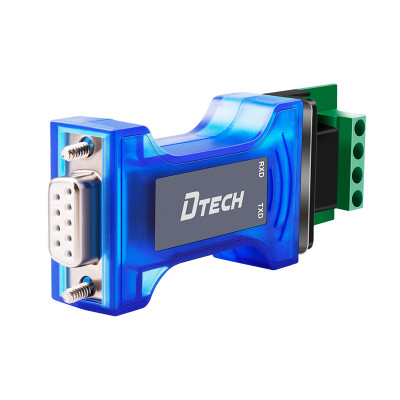

Dtech 1500VDC Passive RS232 Photoelectric Isolation Protector with Lighting
Overview:
Converter is compatible with the RS - 232, RS - 485 standard, can be an RS - 232 signal is converted to Differential signaling of the RS - 485 / RS422, without external power supply, internal adopt unique "RS - 232 charge pump" drive the whole circuit; Circuit
with zero delay automatic transceiver conversion device, prevent collision of the I/O circuit automatic control data flow
direction, so as to ensure the programs written in the RS - 232 manner without change, can be in the safe operation of the RS -485 / RS422 mode, and fully ensure that suitable for the operation of the existing software and hardware interface.

Performance parameter:
1, Interface characteristics: interface compatible with EIA/TIA RS-232C, RS-485/RS-422 standard
2, Electrical interface: RS-232 end DB9 connector, RS-485/422 end DB9 needle type connector, with terminal
3, Work mode: Asynchronous Full Duplex, half duplex difference automatic selection of transmission, without jumper settings
4, Transmission medium: twisted pair or shielded wire5, Transmission rate: 300BPS-11
5.2KBPS6, Size: 64mmX33mmX17mm7, Use of the environment: -20 degrees to 70 degrees, relative humidity of 5% to 95%8, Transmission distance: 1200 meters (RS-485 end) 5 meters (RS-232 end)

Hardware installation and application:
The product shape using the DB-9 universal adapter plug, an output interface with a common terminal, can use a twisted pair or shielded wire, connection, convenient disassembly. When the converter operates in RS-485 half duplex mode, mode of connection using direct way, respectively is T/R+ connected to the other A+, T/R- connected to the other side of the B-. When operating in the RS-422 full duplex mode, using the cross connection mode, respectively is T/R+ connected to the other RXD+, T/R- connected to the RXD-, RXD+ connected to the other TXD+, RXD- connected to the other TXD-.
DT-9003 interface converter supports the following four kinds of communication mode:
1,Four line, point-to-point full duplex
2,Point to multi point / line four full duplex
3,Point to point / line two half duplex
4,Point to multi point / line two half duplex

Note: in order to prevent the reflection and interference signal, need to be connected with a matching resistor in the circuit terminal (parameter 120 ohm 1/4W), as the case may be.
