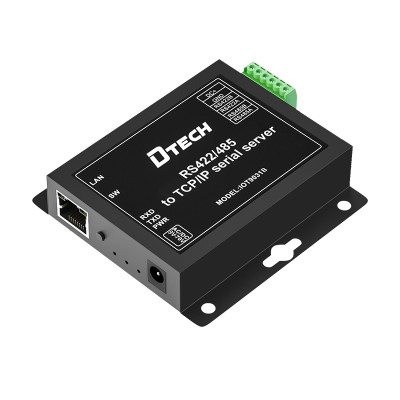

DTECH Industrial Wireless Serial Device Servers RS232/422 to TCP/IP Data Converter to Ethernet rs232 to rs485

DTECH Industrial Wireless Serial Device Servers RS232/422 to TCP/IP Data Converter to Ethernet rs232 to rs485

DTECH Industrial Wireless Serial Device Servers RS232/422 to TCP/IP Data Converter to Ethernet rs232 to rs485
DTECH Industrial Wireless Serial Device Servers RS232/422 to TCP/IP Data Converter to Ethernet rs232 to rs485DTECH Industrial Wireless Serial Device Servers RS232/422 to TCP/IP Data Converter to Ethernet rs232 to rs485DTECH Industrial Wireless Serial Device Servers RS232/422 to TCP/IP Data Converter to Ethernet rs232 to rs485DTECH Industrial Wireless Serial Device Servers RS232/422 to TCP/IP Data Converter to Ethernet rs232 to rs485DTECH Industrial Wireless Serial Device Servers RS232/422 to TCP/IP Data Converter to Ethernet rs232 to rs485
CategoriesConverter
BrandDtech
ModelIOT-9031B
Brand NameDTECH
Product nameSerial Server
TypeConnection
FunctionConverter Ethernet
Keywordssingle Serial Server
FOB portGuangzhou
Terms of PaymentL/C, D/A, D/P, Western Union
Download DOC
Update Time2022/8/8
Detail Information

DTECH Industrial Wireless Serial Device Servers RS232/422 to TCP/IP Data Converter to Ethernet rs232 to rs485


Surge Protected Interfaces Protect Equipment, High Speed Data and the Converter.Powered RS485 isolator provides optical isolation up to 2500Vrms 500DC continuity; transient voltage suppressor TVS supports 600W lightning surge protection over each line of RS485/422 link; 15KV static protection over RS232 link effectively protects your value devices against high voltage spikes.

With built-in booster to amplify signals, it’s a quick simple solution for most industrial automation, commercial computer network application, motor control, even tough environments to have PC in charge of controlling a given process in long haul data acquisition and control applications.

Automatic Data Direction Control ADDC - detect the incoming or outgoing data and automatically switch into the send or receive mode, so no need to worry about data collision problems.

Rack-mounted serial adapter box offers multiple interfaces : RS-232 end is a standard DB9 female connector, RS-485/RS-422 end offers 2 interfaces to chose from: RJ45, screw terminals.


Specific

RS232 Link : DB9 Female
RS-485/RS-422 Link : RJ45 Female, 6 Position Terminal Board
Standards: EIA RS-232, RS-485, RS-422
Signals: RS-232 (TXD, RXD, GND), RS-485 (T/R+, T/R-, GND), RS-422 (T/R+, T/R-, RXD+, RXD-, GND)
Port Protection: 1500 W surge, 15 kV static discharge;
Isolation: 2500Vrms isolation voltage, 500DC continuity DC/DC
Max Distance (RS-422/RS-485 link): 1.2km at 9600 bps, 600m at 38400 bps, 300m at 115200bps
Loading: 32 nodes; wired via twisted pair or shielded wire
