DTECH FTDI USB to TTL Serial 5V Adapter Cable 6 Pin 0.1 inch Pitch Female Socket Header UART IC FT232RL Chip Windows 10 8 7 Linux MAC OS USB to TTL Serial Cable

DTECH FTDI USB to TTL Serial 5V Adapter Cable 6 Pin 0.1 inch Pitch Female Socket Header UART IC FT232RL Chip Windows 10 8 7 Linux MAC OS USB to TTL Serial Cable

DTECH FTDI USB to TTL Serial 5V Adapter Cable 6 Pin 0.1 inch Pitch Female Socket Header UART IC FT232RL Chip Windows 10 8 7 Linux MAC OS USB to TTL Serial Cable
DTECH FTDI USB to TTL Serial 5V Adapter Cable 6 Pin 0.1 inch Pitch Female Socket Header UART IC FT232RL Chip Windows 10 8 7 Linux MAC OS USB to TTL Serial CableDTECH FTDI USB to TTL Serial 5V Adapter Cable 6 Pin 0.1 inch Pitch Female Socket Header UART IC FT232RL Chip Windows 10 8 7 Linux MAC OS USB to TTL Serial CableDTECH FTDI USB to TTL Serial 5V Adapter Cable 6 Pin 0.1 inch Pitch Female Socket Header UART IC FT232RL Chip Windows 10 8 7 Linux MAC OS USB to TTL Serial CableDTECH FTDI USB to TTL Serial 5V Adapter Cable 6 Pin 0.1 inch Pitch Female Socket Header UART IC FT232RL Chip Windows 10 8 7 Linux MAC OS USB to TTL Serial CableDTECH FTDI USB to TTL Serial 5V Adapter Cable 6 Pin 0.1 inch Pitch Female Socket Header UART IC FT232RL Chip Windows 10 8 7 Linux MAC OS USB to TTL Serial Cable
CategoriesUSB converter cable
BrandDtech
Modeldt-6555
Connector TypeUSB Type A
Warranty TypeLimited
Current Rating90 Milliamps
Number of Ports2 ports
FOB portGuangzhou
Download DOC
Update Time2021-09-20
Detail Information

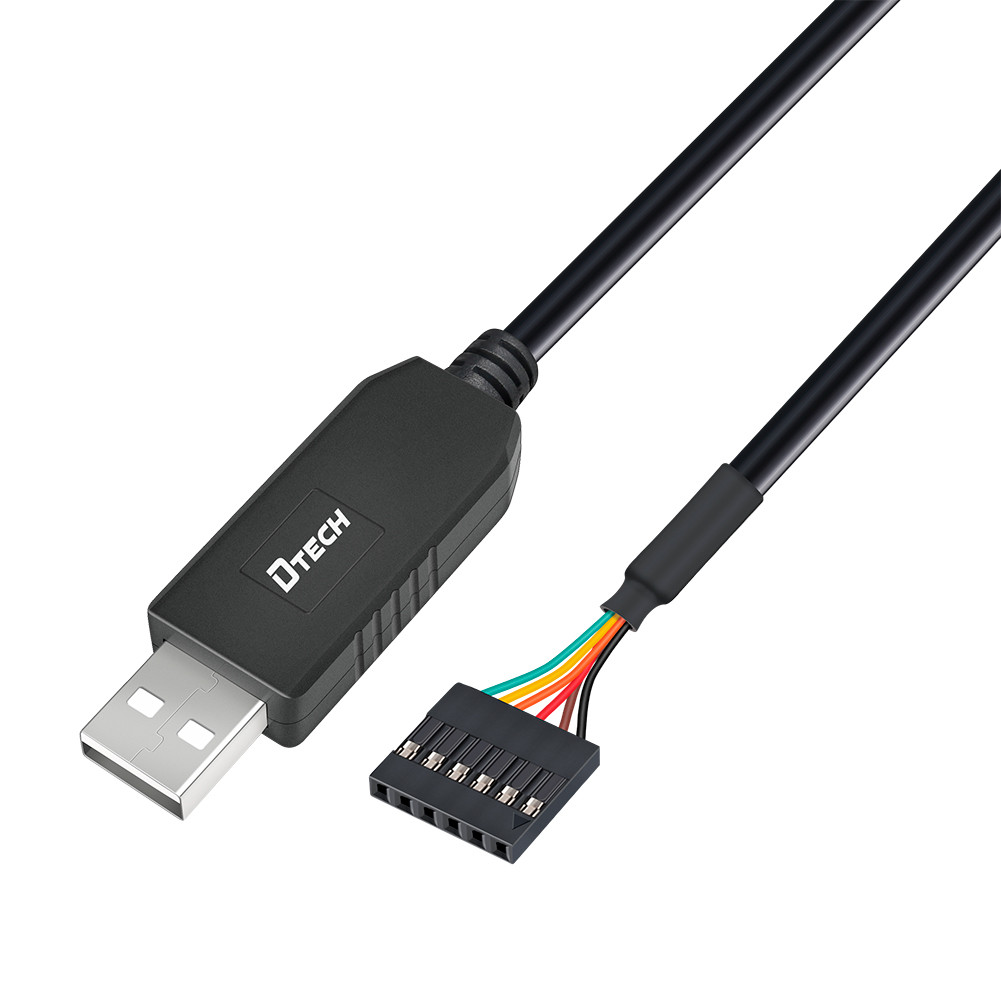

DTECH FTDI USB to TTL Serial 5V Adapter Cable 6 Pin 0.1 inch Pitch Female Socket Header UART IC FT232RL Chip Windows 10 8 7 Linux MAC OS

About this item

  • 6 ft FT232 USB to TTL serial adapter (with 6 pin 0.1” pitch female socket header) connects devices with 5V logic level UART signals interface to a laptop via USB port
  • A genuine FT232RL chip module is housed in USB 2.0 type A male terminal for wider compatibility and supports reliable data transfer rates
  • 6 feet FTDI USB to TTL serial cable (6 way outputs, Single-In-Line ) provides access to Tx, Rx, RTS#, CTS#, VCC (5v) and GND
  • FTDI chipset on the PCB board has configurable internal EEPROM and UART signals can be individually inverted by configuring the EEPROM
  • 6 pin header 5V TTL to USB converter cord is compatible with Windows 10, 8, 8.1, 7 (32, 64-bit), 2008/XP/Vista/CE, Mac OS, Linux 2.4 and greater; ideal USB 2.0 debug cord for Vendor ID re-write, router, GPS, set top box, transmitter, flash firmware on hard drive, etc.
USB to TTL serial cable
