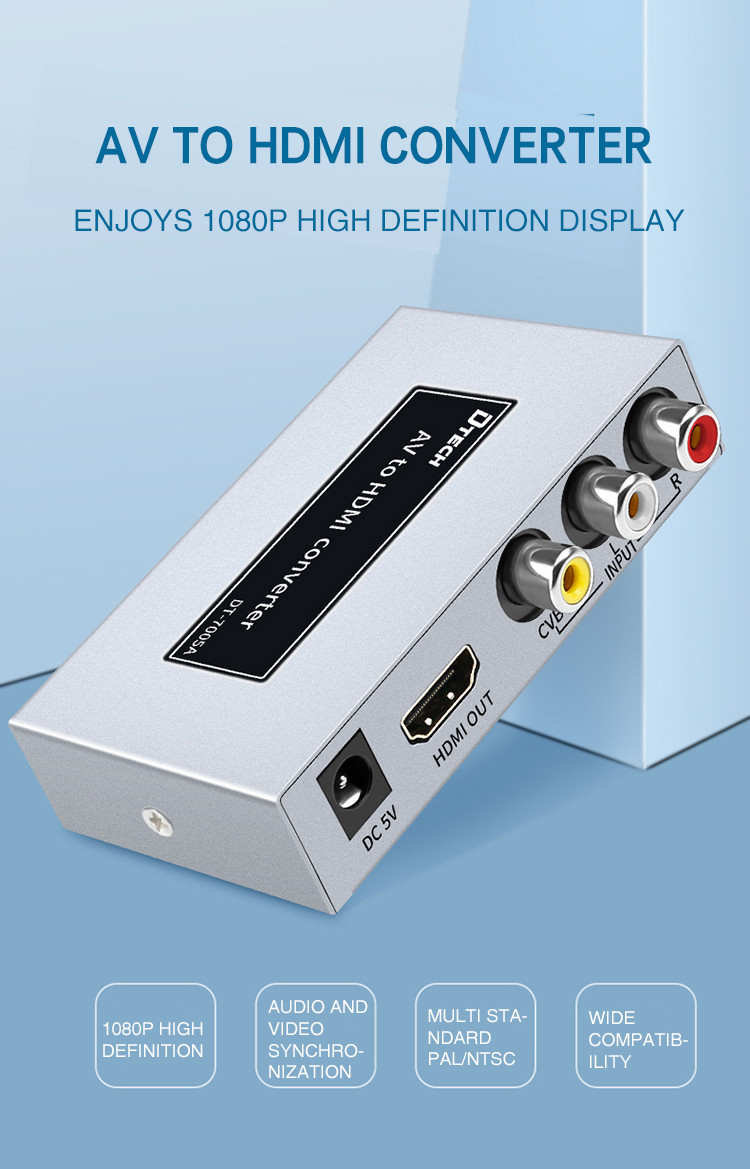

DT-7005A AV to HDMI high-definition converter
| Categories | Converter |
|---|---|
| Brand | Dtech |
| Model | DT-7005A |
| Certification | CE ROHS |
| Resolution | 1080p;480p |
| Warranty | 365days |
| MOQ | 1pcs |
| OEM/ODM | Yes |
| Power Supply | USB charging cable/DV 5V |
| Shell | Metal Shell |
| FOB port | GUANGZHOU |
| Terms of Payment | Western Union, T/T, Paypal |
| Download DOC |  |
| Update Time | Apr 29,2024 |
Ⅰ. Production Introduction
Welcome to use our high quality video converter series product!
AV to HDMI high-definition converter, can convert AV (CVBS) composite video signal and FL/FR stereo audio signal into HDMI digital signal, so that the common audio and video signals of ordinary DVD, camera, etc. are converted to high-definition HDMI signal output, easy to connect LCD TV, HD display, etc.
Ⅱ. Production function parameter description
1, output HDMI signal format: 1080P (50Hz/60Hz) backward compatible
2, input signal format: a group of AV input, a group of stereo audio input
3, HDMI output impedance: 100Ω
4, AV input impedance: 75Ω
5, working environment temperature: -25 ° C -75 ° C
6, working environment humidity: 65%
7, product size: 88 * 48.5 * 20mm(L*W*H)
8, maximum working current: DC5V/350mA

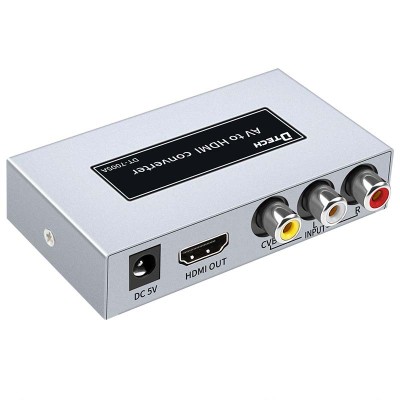

Ⅲ. Connection description
S.N. | Name | Introduction |
❶ | DC 5V | 5V DC power supply |
❷ | HDMI OUT | HDMI signal output |
❸ | CVBS INPUT | CVBS composite video signal input |
❹ | L INPUT | Left channel audio input |
❺ | R INPUT | Right channel audio input |
